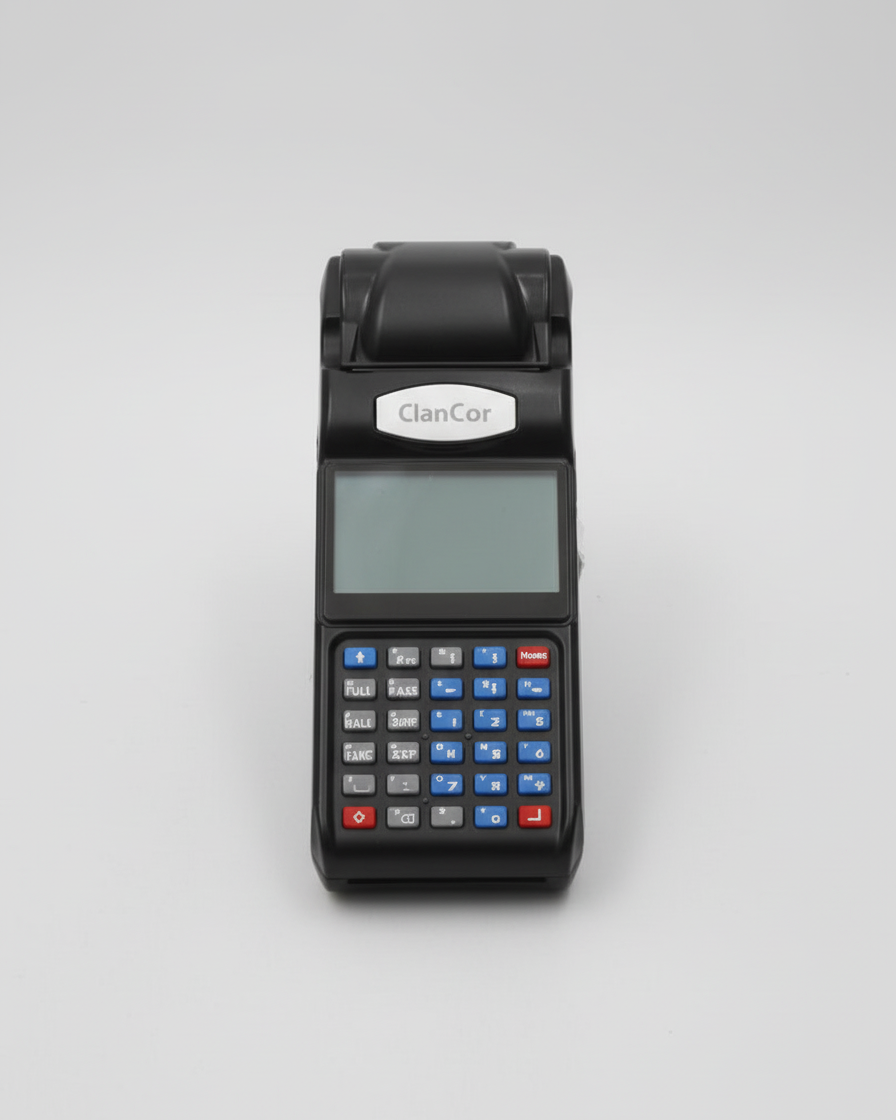

Clancor MP6320 Handheld POS Terminal
MP63XX Series

Clancor MP6320 Handheld POS Terminal

Rugged. Reliable. Ready for the Indian field.

The Clancor MP6320 is a BIS-certified handheld POS terminal manufactured in Coimbatore, India, designed for outdoor field operations including bus ticketing, utility billing, milk collection, and cash collection. It runs on a 32-bit ARM7 processor, features a 2-inch thermal printer at 55mm/s, and weighs under 405g for all-day carry. Optional GPRS, RFID, and GPS modules are available.

Every MP6320 device is Made in India and backed by direct OEM support with 24-hour spare parts dispatch from Coimbatore.

  • 2" thermal printer (55mm/s)
  • Under 405g — lightweight for all-day carry
  • Optional GPRS, RFID, GPS & barcode
  • BIS certified, Made in India
<405g Lightweight
2" Thermal Printer
GPRS RFID & GPS Ready
BIS Certified
Why choose the MP6320

Built for the toughest Indian field conditions

ARM7 RISC Processor

32-bit processor delivers fast, responsive billing and ticketing — no lag, no freezing, even during peak hours.

High-Visibility LCD

128×64 monochrome display with white LED backlight stays readable in direct sunlight and low-light conditions.

Fast Thermal Printer

Built-in 2-inch printer at 55mm/s — prints receipts and tickets in seconds. 384 dots per line for clean, legible output.

GPRS + RFID + GPS Ready

Add connectivity modules as you need them — GPRS for real-time data sync, RFID for smart cards, GPS for route tracking.

All-Day Battery

7.4V / 2600mAh Li-ion battery powers a full shift. Fast-charges in 3 to 3.5 hours so you're ready for the next day.

Drop-Tested & Dustproof

Survives 1-metre drops onto concrete. Operates from -20°C to 50°C. Built for India's roughest field environments.

Technical Specifications

Model
MP6320
Processor
32-bit ARM7TDMI RISC
Program Memory
512KB internal high-speed flash
RAM
32KB internal high-speed SRAM, single-cycle access
Data Memory
32Mbit, expandable up to 128Mbit
Display
FSTN Monochrome LCD 128 × 64, white LED backlight
Integrated Printer
2-inch thermal, >55mm/s, 384 dots/line, with sensor
Keypad
30-key soft rubber with multi-colour keys
USB
USB 2.0 Full Speed
GPRS (optional)
Dual Band GSM, GPRS Multislot Class 10/B, TCP/IP, internal antenna
RFID (optional)
Contactless smartcard reader/writer, ISO IEC 14443A/B, Mifare DESFire EV1 (2k/4k/8k)
Battery
7.4V / 2600mAh Li-ion with protection circuit, 3–3.5hr fast charge
Real-Time Clock
Coin lithium battery backup
Audio
Mono tone buzzer
External Adapter
9.5V / 1000mA
Weight
<405g
Dimensions (L × W × H)
84 × 215 × 53.5mm
Operating Temperature
-20°C to 50°C
Storage Temperature
-30°C to 70°C
Battery Charging Temp
0°C to 40°C
Humidity
5% to 95% non-condensing
Drop Spec
1m drop to concrete across all temperatures
Interested in the MP6320?

Get a Quote for Your Fleet

Whether you need 10 units or 10,000 — our team will help you configure, customise, and deploy the right solution for your operation.

  • BIS certified, Made in India
  • OEM customisation available
  • Genuine spare parts & fast service
